AlphaBNWAS Mk2

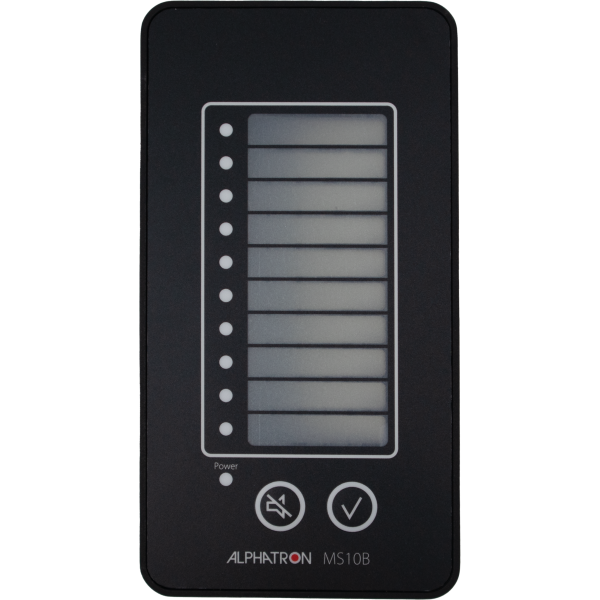

10 Channel Alarm Unit Mk2

The AlphaBNWAS system is a tool that monitors activity on the bridge and detects any absence from the bridge that could lead to a maritime accident.

Cost effective design
Operator friendly
IMO approved
Extendable by means of extra reset buttons

About this product

Flexibility and simplicity were the main goals when the AlphaBNWAS was developed. It is flexible in configuring and applying as well as in programming.
This has resulted in a high graded 10 Channel Alarm Unit that can be applied in many situations. For example, alarms on critical components in generator sets, main engines, and other machines. But also giving an alarm in the wheelhouse, porter’s lodge, cabins, and dayrooms.
For extension of the BNWAS system, this alarm unit will be programmed in the NAV1 mode.
External alarm signals can be connected to this unit. If an alarm is not accepted within the set time, the unit will activate the Call Crew Mode on the BNWAS Main unit.
It can also be a part of any kind of alarm and monitoring system. The Alarm Unit can also give a status indication of watertight doors.

Advantages:

Applicable in many different situations because of the flexibility
Simple configuration by means of internal rotary switches
Easy integration with other systems using the standard RS-485 Modbus interface
Free choice in a channel text description
Defect alarm lights are ruled out by use of LEDs
Integrated pushbuttons, which make extra buttons superfluous
Designed for heavy industrial applications, and therefore its operational safety and reliability can be trusted upon.
